Picking The Right Towbar Wiring Socket

When towing, a safe electrical connection is just as important as the mechanical integrity of the towbar and towball. Correctly configured trailer sockets and wiring systems ensure that the trailer brake lights, indicators, and braking systems match those of the towing vehicle. Just like towballs, different countries use different standards to govern trailer sockets, meaning sockets and plugs are not always interchangeable.

Here’s a guide to the most common trailer sockets, including the legal requirements for New Zealand, the UK, Europe, Australia, and the USA.

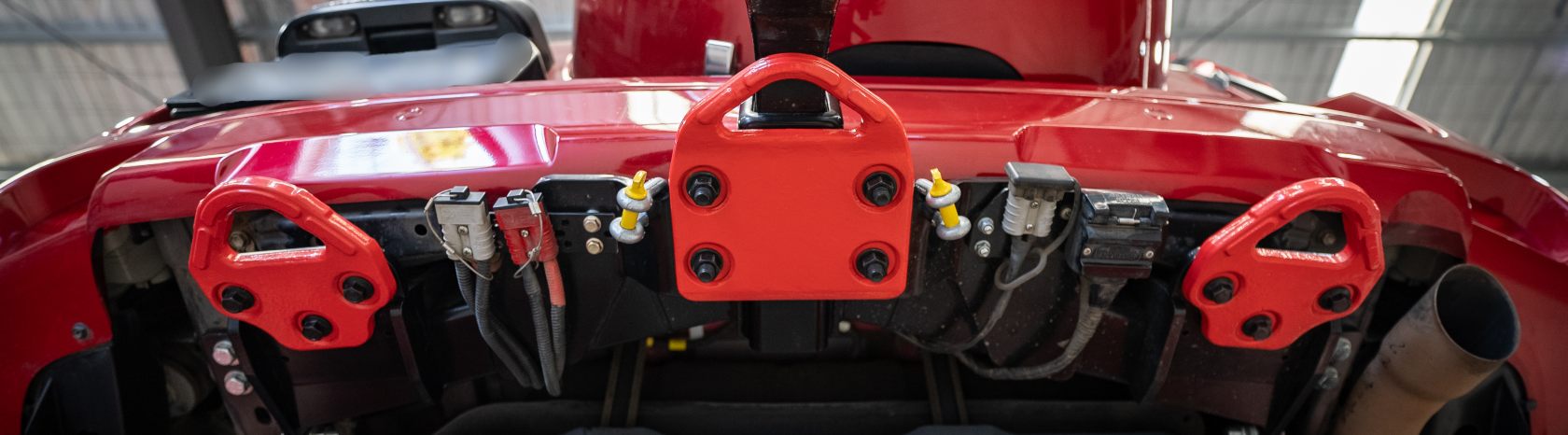

Common Trailer Socket Types

• 7-Pin Flat Socket: Widely used in New Zealand and Australia for towing trailers under 3,500 kg; suitable for basic lighting functions.
• 7-Pin Round Small Socket: Common in older trailers in New Zealand and Australia; compact, but less common today.
• 7-Pin Round Large Socket: Used for heavy-duty trailers; offers a more robust connection.
• 12-Pin Flat Socket: Expands on the 7-pin flat socket by adding more functionality such as auxiliary power for charging batteries or powering electric brakes.
• 13-Pin Euro Socket: Standard in Europe; supports lighting, fog lamps, reverse lights, and auxiliary functions.
• 4-Pin Flat Socket (USA): Basic connector for small trailers; covers brake lights, indicators, and tail lights only.
• 5-Pin Flat Socket (USA): Adds reverse lights or an electric brake signal.
• 7-Pin Round Blade (USA RV Standard): Most common for caravans and utility trailers; supports brakes, charging, and lighting.

New Zealand

• Legal Requirement: Trailer lights must mirror the towing vehicle.
• Common Sockets: 7-pin flat and 7-pin round (small and large).
• Modern Trailers: Increasing use of 12-pin flat sockets for caravans and trailers with electric brakes or auxiliary power needs.
• Compatibility: Adaptors are commonly used but must be wired correctly and tested to ensure all trailer lighting and braking systems work properly.

Australia

• Common Sockets: 7-pin flat (most popular), 7-pin round, and 12-pin flat.
• Heavy-Duty / Caravans: 12-pin flat sockets are often used for charging onboard batteries, powering fridges, or controlling electric brakes.
• Legal Requirement: All lights (stop, indicator, tail, and plate lights) must function correctly.

United Kingdom

• Standard Sockets: 7-pin (ISO 1724) and 13-pin (ISO 11446).
• Caravans & New Trailers: Must use 13-pin sockets since 2008, providing reverse lights, fog lamps, and power supply.
• Older Trailers: 7-pin sockets are still legal and used for basic lighting.

Europe

• Standard Socket: 13-pin Euro (ISO 11446).
• Requirements: Must provide power to lights, fog lamps, reversing lights, and auxiliary functions.
• Advantages: Offers a more reliable, waterproof connection compared to 7-pin systems.
• Adaptors: Available for towing older trailers with 7-pin plugs.

United States

• Common Sockets:
• 4-pin flat: For small trailers, covering stop/tail/turn lights.
• 5-pin flat: Adds reverse or brake control.
• 6-pin round: Adds 12V auxiliary and electric brakes.
• 7-pin RV blade: Standard for most caravans and large trailers; includes power supply for brakes and battery charging.
• Regulations: Governed by SAE J2863 and FMVSS lighting standards.

Tip: When importing a caravan from the UK to New Zealand, you’ll likely need an adaptor harness to connect the trailer to the towing vehicle as a temporary solution. For a more reliable, weatherproof, and safer electrical connection, consider rewiring the trailer to match the towing vehicle’s socket.
